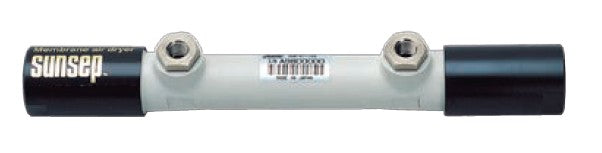

4" SWB Series Multi-Tube Dryer

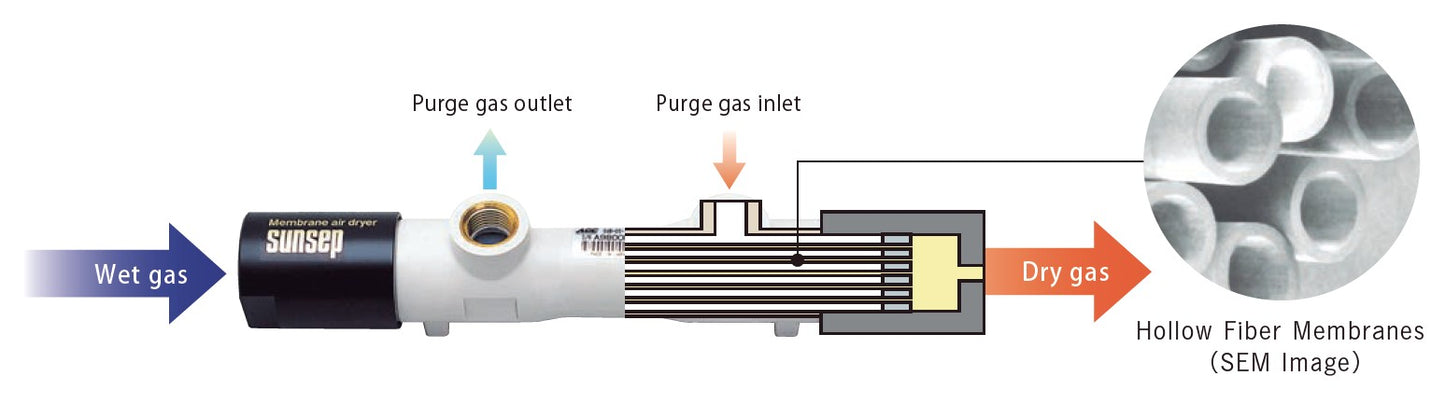

SWB series multi-tube dryers offer high-performance drying in a small, lightweight shell.  They can be mounted in any location, and in any position.

Specifications:

• Flow Rate:  ~150 L/min (ANR)
• Supply Gas Temperature Range:  -20 to 55°C
• Purge Gas Temperature Range:  -20 to 55°C
• Supply Gas Pressure Range:  0 to 120 psig

• Purge Gas Pressure Range:  0 to 7 psig
• Supply Gas Connectors:  1/4" NPT
• Purge Gas Connectors:  1/8" NPT
