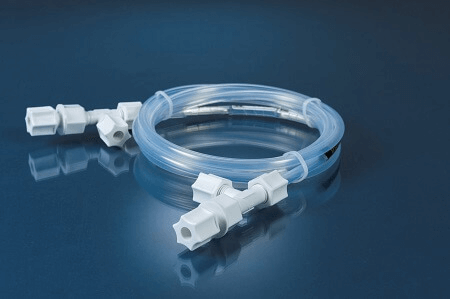

48" Analytical Sample Gas Dryer - Polypropylene Fittings

SWG Series Analytical Sample Gas Dryer.  Dehumidify gas samples up to 4 liters per minute without the loss of target gasses.  Integrated purge line carries unwanted humidity away from the sample.

Specifications:

• Supply Gas Temperature Range:  -15 to 80°C
• Ambient Temperature Range:  -15 to 80°C
• Supply Gas Pressure Range:  -6.0 to 72 psig
• Purge Gas Pressure Range:  -6.0 to 7.2 psig

Operating Notes:

• To maintain optimal dehumidification performance, minimize the difference between supply and purge temperatures, ideally within 5°C.
• Adapters available to fit alternatate supply and purge tubing sizes - Just ask!
